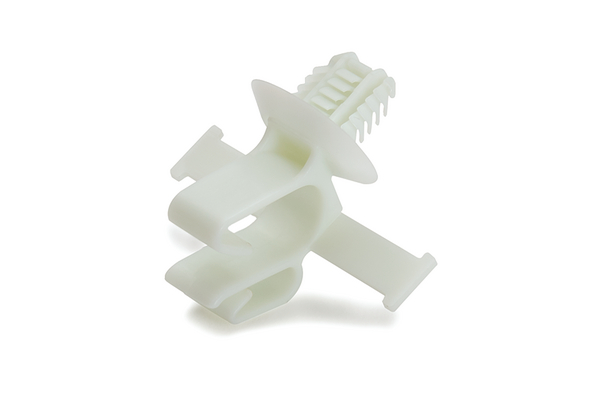

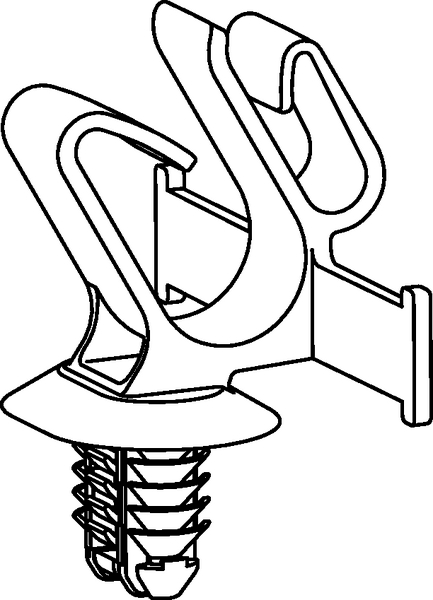

Bundling clip for hole (oval), natural, 3000pcs.
Art.-Nr. 133-02473 | BCFTOVAL3-PA66HIRHS-NA |  Details

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Natural (NA)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCFTOVAL3-PA66HIRHS-NA
    Pack Cont. 3000pcs.
    Package Content packed in box
    Type BCFTOVAL3
    Attach to Ø 12.0, 5.0
    Disc ∅ 5.0 mm; 12.0mm
    Fixing Hole Shape Oval
    Panel Thickness max. 0.6 - 6.75mm
    Tolerance +/- ±0.4%
    Weight/Unit 0.0023kg
    for Hole ∅ (FH) 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026566177
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 6.900001kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 7.720001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 113.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
