27/12/2024

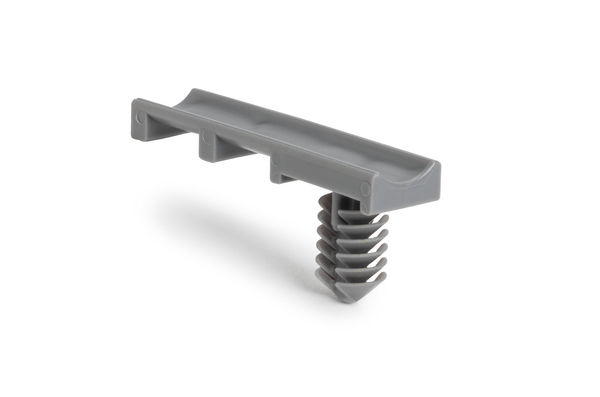

Bundling clip, L=39.95mm, grey, 1500Carton
Art.-Nr. 133-02794 | BCOW40FT6.35PT4.6-PP-GY |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Material Polypropylene (PP)
    PART DESCRIPTION BCOW40FT6.35PT4.6-PP-GY
    Pack Cont. 1500Carton
    Package Content packed in carton
    Type BCOW40FT6.35PT4.6
    Bundling Bar Length 1.57"
    Bundling Bar Length 39.95mm
    Height (H) 16.9mm
    Height (H2) 12.3mm
    Length (L) 39.9mm
    Length (L2) 7.7mm
    Panel Thickness max. 0.5 - 4.6mm
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.2 - 6.5 mm
    for Panel Thickness min - max 0.5 - 4.6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580654
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Weight (kg) 4.14kg
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
