22/12/2024

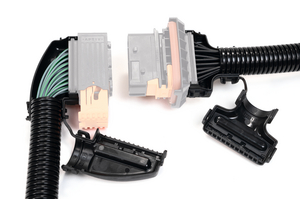

Backshell, 90°, nom∅10.0mm, black, 800pcs.
Art.-Nr. 151-02788 | BSB90NW10-PA66/PA6FR-BK |  Details

    • Strain relief for corrugated tubes
    • Four shrouded locks
    • Strapping points fully integrated with cover for maximum retention of harness
    • Nominal diameter printed in backshell
    • Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
    • Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
    • Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The backshells or covers protecting the individual cables and wires from splashing water and dirt.
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION BSB90NW10-PA66/PA6FR-BK
    Pack Cont. 800pcs.
    Package Content packed in bag
    Product Family Backshell B, 90° elbow, NW 10 CTCS-series
    Product Group Connector Accessory Backshells, Group B
    Type BSB90NW10
    Angle 90

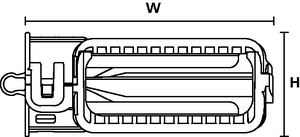

    Height (H) 25.85mm
    Height (H2) 19.55mm
    Length (L) 44.35mm
    Length (L2) 104.4mm
    Nominal ∅ 10.0mm
    Weight/Unit 0.00651kg
    Width (W) 26.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026617978
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 800
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 5.273411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 800
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 5.923411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 139.46kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
