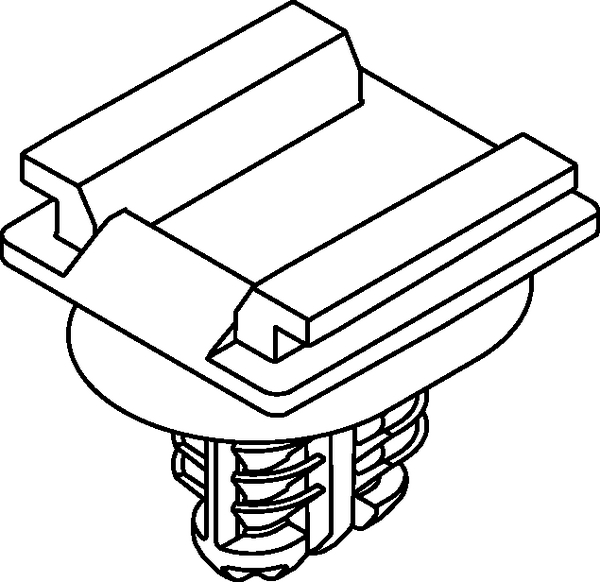

Connector clip, black, 3000Carton
Art.-Nr. 151-02876 | CC19.2FT6.5X13OVAL-PA66HIRHS-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC19.2FT6.5X13OVAL-PA66HIRHS-BK
    Pack Cont. 3000Carton
    Package Content packed in box

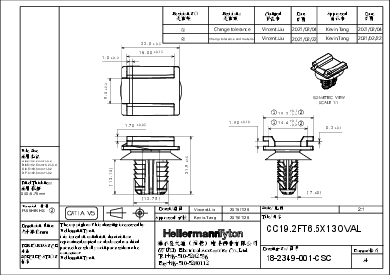

    Type CC19.2FT6.5X13OVAL
    Height (H) 21.9mm
    Length (L) 22.0mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 19.2mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
