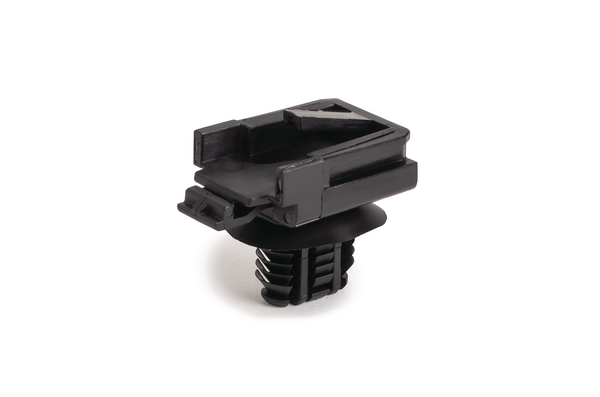

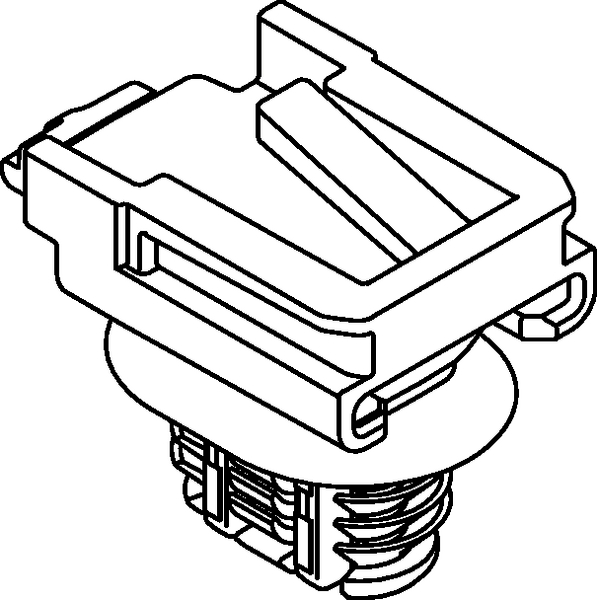

Connector clip, black, 2000pcs.
Art.-Nr. 156-04011 | CC23-CC17FT9X17-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC23-CC17FT9X17-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Type CC23-CC17FT9X17
    Height (H) 29.3mm
    Length (L) 32.83mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 20.5mm
    Width (W2) 17.2mm
    for Hole ∅ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026663722
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
