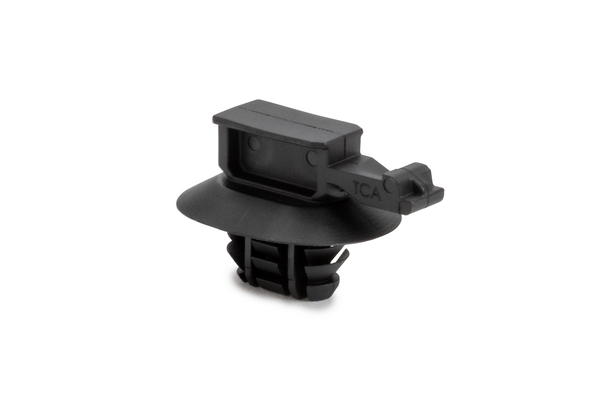

Connector clip, black, 3500pcs.
Art.-Nr. 151-04045 | CC7OVAL8-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC7OVAL8-PA66HIRHSUV-BK
    Pack Cont. 3500pcs.
    Package Content packed in bag
    Type CC7OVAL8
    Height (H) 17.55mm
    Length (L) 28.8mm
    Panel Thickness max. 0.6 - 3.0mm
    Width (W) 17.31mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 3 mm
    CE Certification No
    CSA Certified No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026730820
    Packaging 3 - Height (m) 0.204978m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 3500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0328m³
    Packaging 3 - Weight (kg) 3.85kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Qty 140000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
