02/04/2025

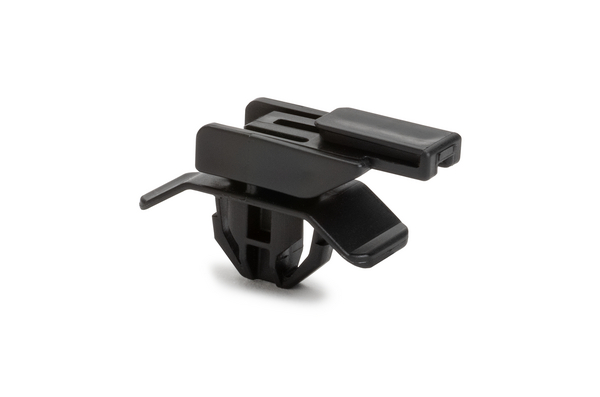

Connector clip, black, 2400Bag
Art.-Nr. 133-03060 | CCAH7X12PT0.5-3.0-PP-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Engineered design options include anti-rattle disc, anti-rotation oval fir tree and clamp for mounting on edges. An assortment of connector clips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polypropylene (PP)
    PART DESCRIPTION CCAH7X12PT0.5-3.0-PP-BK
    Pack Cont. 2400Bag
    Package Content packed in carton
    Type CCAH7X12PT0.5-3.0
    Height (H) 22.8mm
    Length (L) 38.31mm
    Panel Thickness max. 0.5 - 3.0mm
    Weight/Unit 0.002kg
    Width (W) 13.2mm
    for Hole ⌀ (FH) 7.0 - 12.0 mm
    for Panel Thickness min - max 0.5 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026587172
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.57m
    Packaging 1 - Qty 2400
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02907m³
    Packaging 1 - Weight (kg) 4.800001kg
    Packaging 1 - Width (m) 0.34m
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 2400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 5.620001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 28800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 88.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
