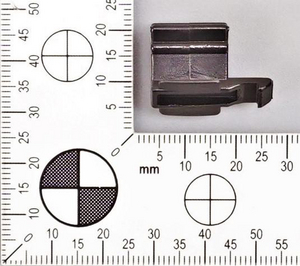

Connector clip for edge, black, 1000pcs.
Art.-Nr. 151-02270 | CCEC3.0TP-PA66HIRHS-BK |  Details

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCEC3.0TP-PA66HIRHS-BK
    Pack Cont. 1000pcs.

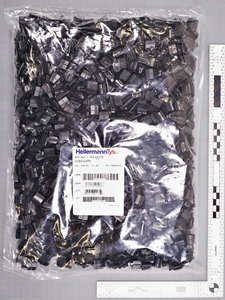

    Package Content packed in bag
    Product Group Connector Clips for Edges
    Type CCEC3.0TP
    Height (H) 18.1mm
    Length (L) 23.5mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.001669kg
    Width (W) 10.4mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026289663
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00542m³
    Packaging 1 - Weight (kg) 1.690815kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 17.86815kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 378.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
