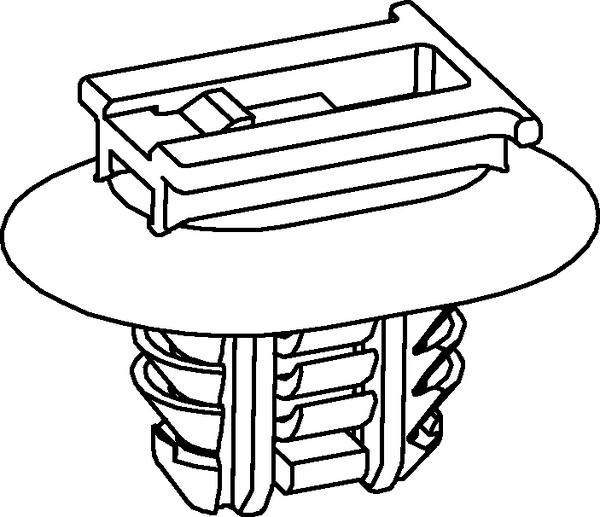

Connector clip for hole (oval), black, 8000pcs.
Art.-Nr. 151-02654 | CCFTOVAL-Big-Slot-PA66HIRHS-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCFTOVAL-Big-Slot-PA66HIRHS-BK
    Pack Cont. 8000pcs.
    Package Content packed in carton
    Type CCFTOVAL-Big-Slot
    Height (H) 16.8mm
    Length (L) 23.6mm
    Width (W) 17.6mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 4 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026615837
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
