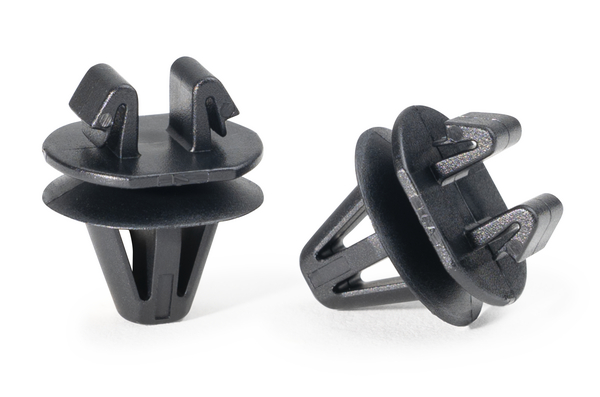

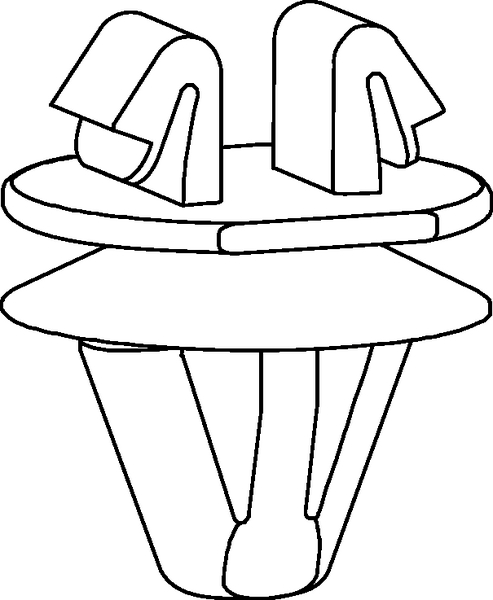

Connector clip for hole (round), black, 1000pcs.
Art.-Nr. 151-01171 | CCSCSFT8-0.6-1.4-PA66HIRHS-BK |  Details

Connector clip with arrow head for round holes, to fix cable chanels, brackets and holders.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSCSFT8-0.6-1.4-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Type CCSCSFT8-0.6-1.4
    Disc ∅ 16.0mm
    Height (H) 18.9mm
    Height (H2) 9.3mm
    Length (L) 16.0mm
    Panel Thickness max. 0.6 - 1.4mm
    Weight/Unit 0.00079kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 8.0 mm
    for Panel Thickness min - max 0.6 - 1.4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026465593
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.811815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.46726kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 192000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 187.464kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
