22/11/2024

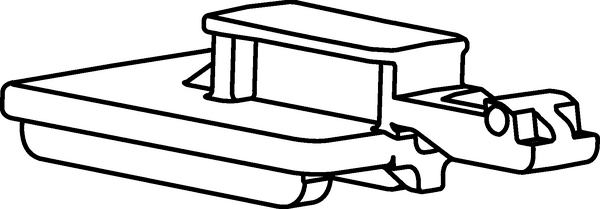

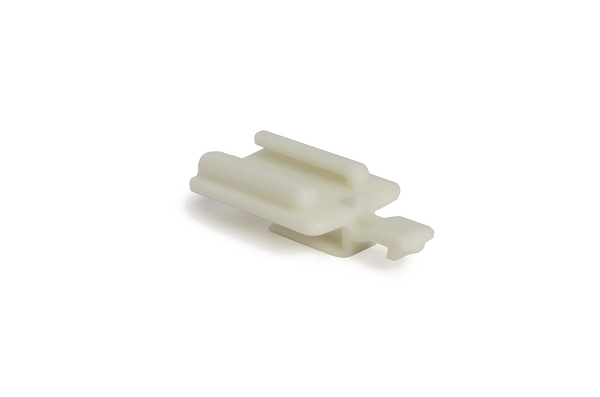

Connector clip for connector, EWCAP-005-7, natural, 5000pc.
Art.-Nr. 133-02489 | CCSTDFAKRAADP-PA66HIRHS-NA |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Connector adapter
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector adapter clips used here have been designed for electronic cables and cable sets used in the automotive industry. The adapter hold two connectors safe together.
    Colour Natural (NA)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSTDFAKRAADP-PA66HIRHS-NA
    Pack Cont. 5000pc.
    Package Content packed in box
    Type CCSTDFAKRAADP
    Type of connection USCAR7

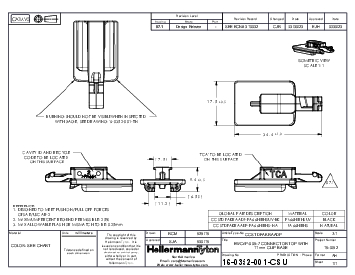

    Height (H) 9.4mm
    Length (L) 34.4mm
    Weight/Unit 0.001kg
    Width (W) 17.5mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026567761
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 5.61kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 133.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
