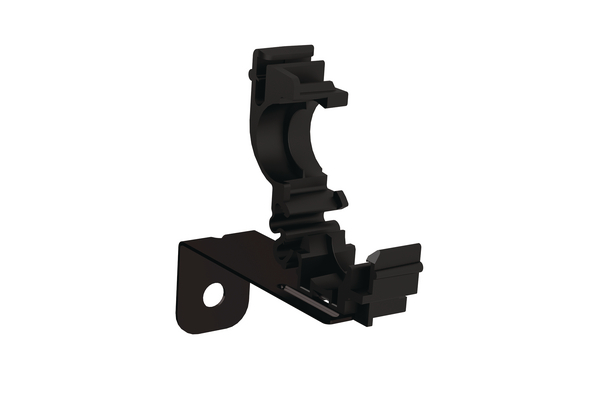

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 700pcs.
Art.-Nr. 133-03482 | CDC13B50OS15.75M6-PA66-BK |  Details

Internal rib stabilizes tubing to prevent movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION CDC13B50OS15.75M6-PA66-BK
    Pack Cont. 700pcs.
    Package Content packed in carton
    Type CDC13B50OS15.75M6
    Attach to Ø 13
    Bundle Diameter max (metric) 13.0mm
    Bundle ∅ 13.0mm
    Diameter (D) 14.0mm
    Height (H) 75.7mm
    Length (L) 65.7mm
    Offset Length 50mm
    Stud ∅ M6"
    Stud ∅ M6
    Width (W) 23mm
    for Hole ∅ (FH) 6.5 mm
    ∅ (D2) 17.6mm
    ∅ D 0.55"
    ∅ D2 0.69"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026595566
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.349m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
