24/12/2024

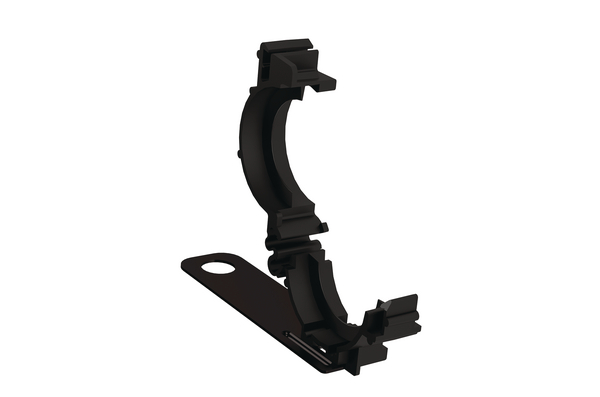

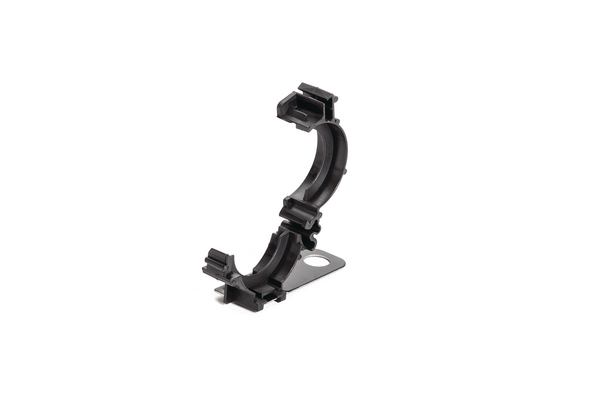

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 500pcs.
Art.-Nr. 151-02609 | CDC25S60.5M10-PA66HIRHS-BK |  Details

Internal rib prevents tubing movement or rattling.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M10 Screw
    PART DESCRIPTION CDC25S60.5M10-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Type CDC25S60.5M10
    Attach to Ø 25
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 25.0mm
    Diameter (D) 27.0mm
    Height (H) 79.6mm
    Length (L) 94.7mm
    Offset Length 60.5mm
    Stud ∅ M10"
    Stud ∅ M10
    Width (W) 23mm
    for Hole ∅ (FH) 10.6 mm
    ∅ (D2) 35.4mm
    ∅ D 1.06"
    ∅ D2 1.39"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
