Bundling clip for hole (round), L=40.0mm, black, 500pcs.
Art.-Nr. 150-07010 | CHDP66-PA66-BK |  Details

    • Easy to install without the need for a tool
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Upright tapebar can be used from both sides
    Add to watchlist

    Request your individual offer now

     Request quote

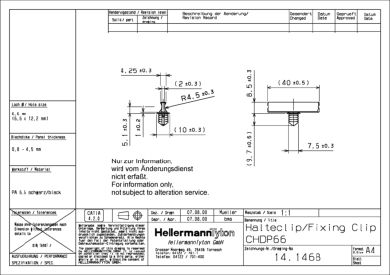

    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CHDP66-PA66-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group Bundling Clips with Fir Tree
    Short Description Bundling Clip with Fir Tree for Panel Thickness 0.8-4.5 mm, black
    Type CHDP66
    Bundling Bar Length 40.0mm
    Height (H) 8.5mm
    Height (H2) 9.7mm
    Length (L) 40.0mm
    Panel Thickness max. 0.8 - 4.5mm
    Weight/Unit 0.0011kg
    Width (W) 4.25mm
    for Hole ∅ (FH) 6.6 mm
    for Panel Thickness min - max 0.8 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660302626
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00217m³
    Packaging 1 - Weight (kg) 0.550001kg
    Packaging 1 - Width (m) 0.203m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 11.80202kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 257.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
