22/11/2024

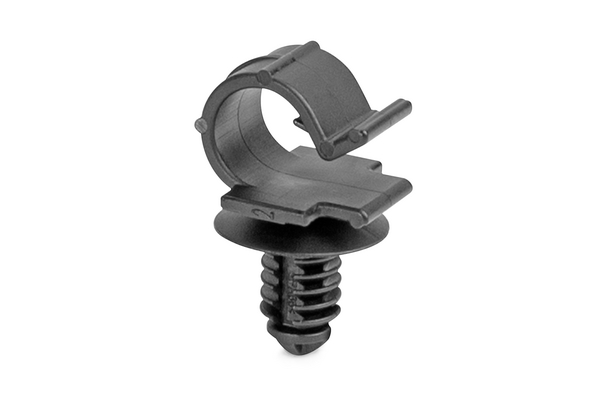

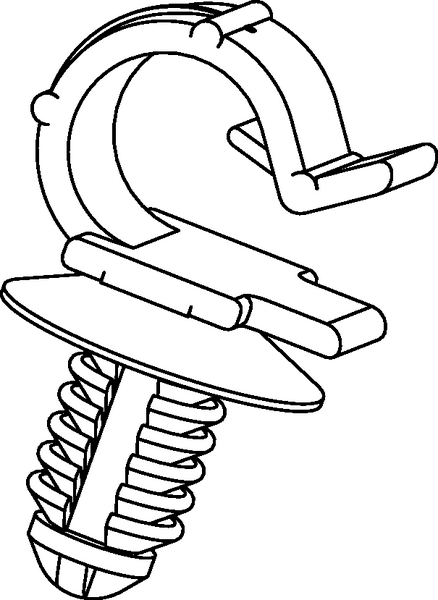

Cable clip, T=0.7-6.5mm, ∅6.3 - 6.7 mm
Art.-Nr. 151-02889 | FT6.5OC7-9-PA66HIRHS-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT6.5OC7-9-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Type FT6.5OC7-9
    Attach to Ø 7.0-9.0
    Height (H) 16.0mm
    Length (L) 28.9mm
    Panel Thickness max. 0.7-6.5mm
    Width (W) 18.1mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 6.5 mm
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026621555
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
