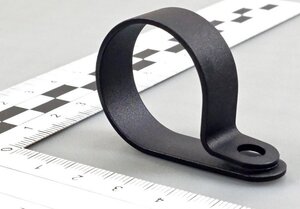

P-clamp closed, Dmax=28.5mm, ∅5.2 mm, black, 500pcs.
Art.-Nr. 211-00260 | H16P-PA66-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION H16P-PA66-BK

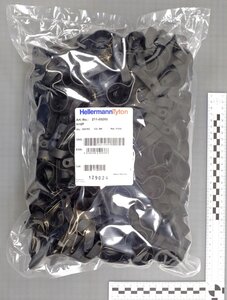

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Short Description Plastic P-Clip PA66 black 28.5 mm
    Type H16P
    Variant Closed
    Bundle Diameter max (metric) 28.5mm
    Bundle ∅ 28.5mm
    Fixing Hole Centres (F) 24.0mm
    Nominal ∅ 28.5mm
    Radius (R) 2.5mm
    Wall (WT) 1.5mm
    Weight/Unit 0.002238kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 5.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026502366
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0149m³
    Packaging 1 - Weight (kg) 1.140815kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 5.383912kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 128.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
