19/12/2024

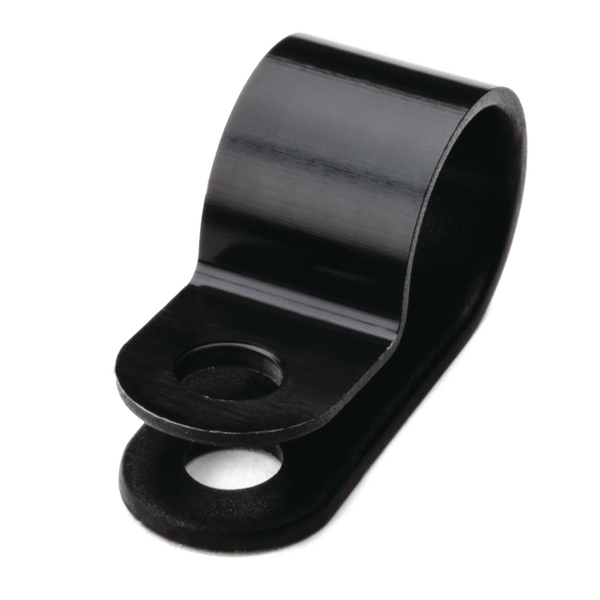

P-clamp closed, Dmax=11.0mm, ∅4.2 mm, black, 100pcs.
Art.-Nr. 211-60005 | H6P-PA66HS-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION H6P-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Short Description Plastic P-Clip PA66HS black 11 mm
    Type H6P
    Variant Closed
    Bundle Diameter max (metric) 11.0mm
    Bundle ∅ 11.0mm
    Fixing Hole Centres (F) 0.51"
    Fixing Hole Centres (F) 13.0mm
    Nominal ∅ 0.44"
    Nominal ∅ 11.0mm
    Radius (R) 1.0mm
    Radius (R) 0.04"
    Wall (WT) 0.047"
    Wall (WT) 1.2mm
    Weight/Unit 0.0007kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 4.2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5340-01-338-7002
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026240848
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.205m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00067m³
    Packaging 1 - Weight (kg) 0.10477kg
    Packaging 1 - Width (m) 0.13m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.3631kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 182.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
