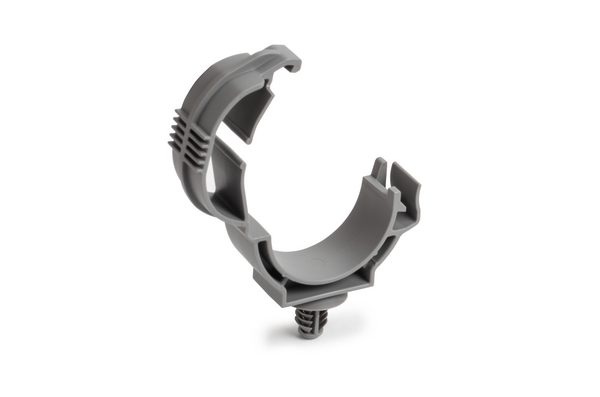

Cable clip, T=0.6 - 4.0mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=25.0mm, Dmax=30.0mm, nom⌀=25.0 - 30.0 mm
Art.-Nr. 151-04186 | LOC25-30FT6.5-PA46-GY |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Grey (GY)
    Fixation Method Fir Tree
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION LOC25-30FT6.5-PA46-GY
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type LOC25-30FT6.5
    Bundle ⌀ 25.0-30.0mm
    Bundle ⌀ min. 25.0mm
    Bundle Diameter Nom. (ND) 25.0 - 30.0 mm
    Bundle Diameter max (metric) 30.0mm
    Depth (D) 15.0mm
    Height (H) 53.2mm
    Length (L) 63.5mm
    Panel Thickness max. 0.6 - 4.0mm
    Width (W) 15.0mm
    for Hole ⌀ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 4 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026739564
    Packaging 1 - Qty 1000
    Packaging 1 - Type carton
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
