26/12/2024

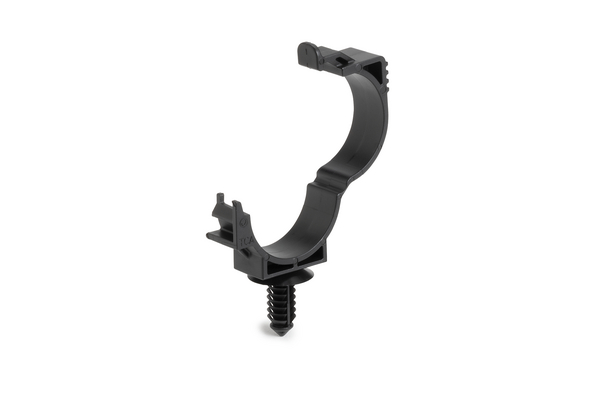

Cable clip, T=0.60-8.25mm, ∅6.5 mm, Dmin=20.0mm, Dmax=24.5mm, nom∅=26.0 - 28.0 mm
Art.-Nr. 151-02578 | LOC26-28FT6LG2-PA66HIRHSUV-BK |  Details

Non-rotating fir tree provides easy insertion with high extraction resistance.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC26-28FT6LG2-PA66HIRHSUV-BK
    Pack Cont. 1000Carton
    Package Content packed in carton
    Type LOC26-28FT6LG2
    Bundle Diameter Nom. (ND) 26.0 - 28.0 mm
    Bundle Diameter max (metric) 24.5mm
    Bundle ∅ 20.0-24.5mm
    Bundle ∅ min. 20.0mm
    Height (H) 36.87mm
    Panel Thickness max. 0.60-8.25mm
    Width (W) 38.93mm
    for Hole ∅ (FH) 6.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Weight (kg) 4.2kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
