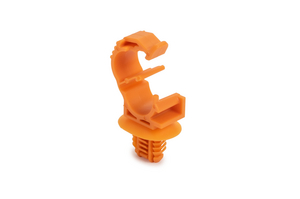

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=5.0mm, Dmax=9.0mm, nom∅=5.0 mm - 9.0 mm
Art.-Nr. 151-01306 | LOC5-9FTOVAL-PA66HIRHSUV-BK |  Details

Disc surrounding the oval fir tree eliminates potential debris and water to enter the panel hole.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features lockable, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC5-9FTOVAL-PA66HIRHSUV-BK
    Pack Cont. 1700pcs.
    Package Content packed in carton
    Product Family LOC-Series
    Product Group Fixing Elements for Tubes and Pipes
    Short Description Harness Clip, close, oval hole 6.2 x 12.2 mm/6.5 x 12.5 mm/6.5 x 13.0 mm/7.0 x 12.0 mm, fir tree, high impact modified, heat and UV-stabilised, black
    Type LOC5-9FTOVAL
    Bundle Diameter Nom. (ND) 5.0 mm - 9.0 mm
    Bundle Diameter max (metric) 9.0mm
    Bundle ∅ 5.0-9.0mm
    Bundle ∅ min. 5.0mm
    Depth (D) 12.0mm
    Fixing Hole Shape Oval
    Height (H) 34.2mm
    Length (L) 25.5mm
    Min.Tensile Strength 110N
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.002859kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026510682
    Packaging 1 - Height (m) 0.18m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 1700
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0279m³
    Packaging 1 - Weight (kg) 4.860301kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 1700
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 5.480301kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 34000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 130.606kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
