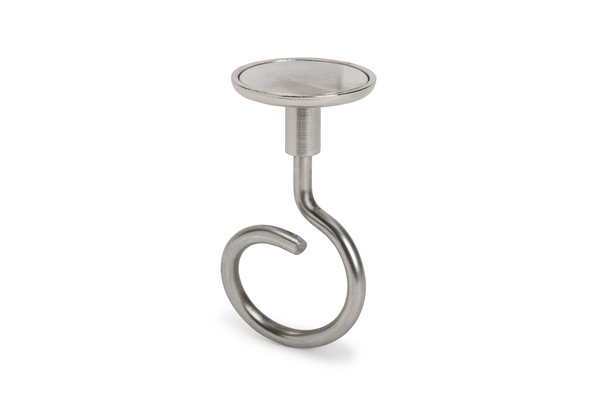

Cable clip, nom∅=31.67 mm, metal, 10pcs.
Art.-Nr. 151-04035 | MAGBR90M-NDFEB45/ST-ML |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Fixation Method Magnet
    Magnetic pull strength (N) 400N
    Magnetic pull strength (kgf) 40.79
    Magnetic pull strength (lb/ft) 90lbf-ft
    Material Neodymium alloy 45M (NDFEB45), Steel (ST)
    PART DESCRIPTION MAGBR90M-NDFEB45/ST-ML
    Pack Cont. 10pcs.
    Package Content packed in box
    Type MAGBR90M
    Bundle Diameter Nom. (ND) 31.67 mm
    Diameter (D) 40mm
    Height (H) 81.12mm
    Rotation (°) 0°
    ∅ D 1.57"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026730295
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
