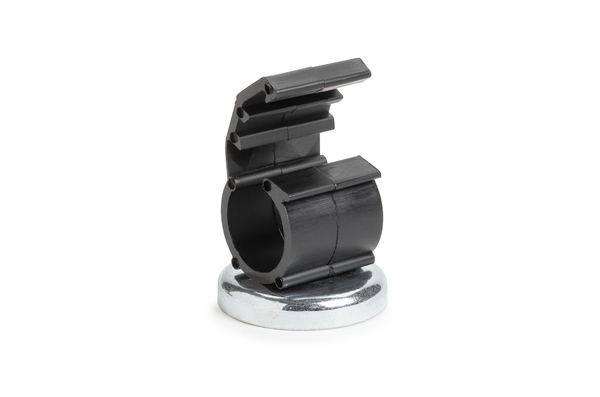

Cable clip, Dmax=12.7mm, nom∅=12.7 mm
Art.-Nr. 151-03647 | MAGCLMP15L-NDFEB45/POM/ST-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Magnet
    Magnetic pull strength (N) 66N
    Magnetic pull strength (kgf) 6.73
    Magnetic pull strength (lb/ft) 15lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCLMP15L-NDFEB45/POM/ST-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Type MAGCLMP15L
    Bundle Diameter Nom. (ND) 12.7 mm
    Bundle Diameter max (metric) 12.7mm
    Bundle ∅ 12.7mm

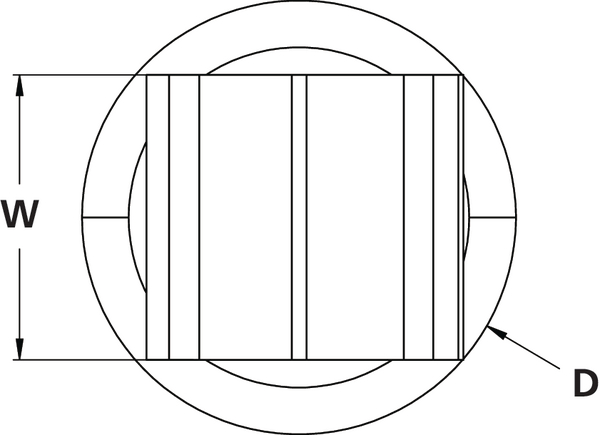

    Diameter (D) 23.2mm
    Height (H) 21.5mm
    Rotation (°) 360°
    Width (W) 15.2mm
    ∅ D 0.91"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026754437
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
