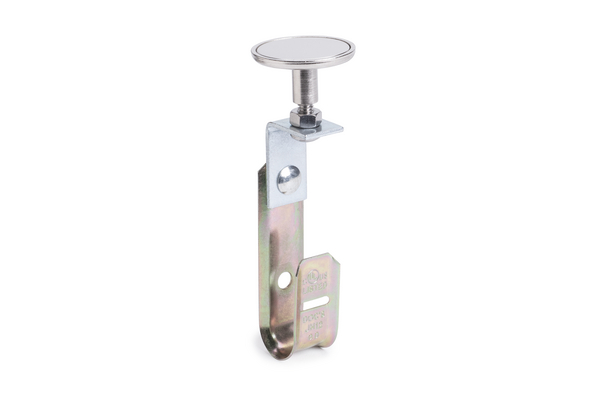

Cable clip, nom∅=14.2 mm
Art.-Nr. 151-03656 | MAGJH90TXS-NDFEB45/ST-ML |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Fixation Method Magnet
    Magnetic pull strength (N) 400N
    Magnetic pull strength (kgf) 40.79
    Magnetic pull strength (lb/ft) 90lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Steel (ST)
    PART DESCRIPTION MAGJH90TXS-NDFEB45/ST-ML
    Pack Cont. 100pcs.
    Package Content packed in box
    Type MAGJH90TXS
    Bundle Diameter Nom. (ND) 14.2 mm
    Depth (D) 21.6mm
    Diameter (D) 40.0mm
    Height (H) 125.8mm
    Rotation (°) 360°
    Width (W) 22.5mm
    ∅ D 1.57"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026754482
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
