28/04/2025

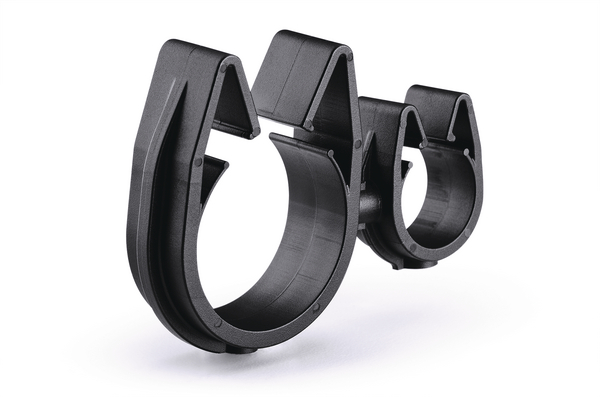

Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom⌀=14.0 mm, nom⌀2=26.0 mm
Art.-Nr. 156-02354 | MOC14FMOC26M-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC14FMOC26M-PA66HIRHSUV-BK
    Pack Cont. 1000
    Package Content packed in pack
    Type MOC14FMOC26M
    Variant Clip to Clip
    Bundle ⌀ 13.0-15.8mm
    Bundle ⌀ 2 max. 29.0mm
    Bundle ⌀ 2 min. 23.0mm
    Bundle ⌀ max. 15.8mm
    Bundle ⌀ min. 13.0mm
    Bundle Diameter Nom. (ND) 14.0 mm
    Bundle Diameter Nom. 2 (ND2) 26.0 mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 59.7mm
    Length (L2) 31.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586236
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 205.82kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 6.44kg
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
