26/12/2024

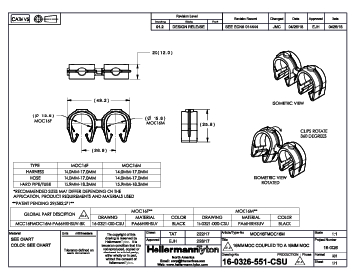

Cable clip, Dmin=14.0mm, Dmax=18.3mm
Art.-Nr. 156-04240 | MOC16FMOC16M-PA66HIRHSUV-BK |  Details

A rotatable dual routing clip that keeps two routings secured and separated.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC16FMOC16M-PA66HIRHSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type MOC16FMOC16M
    Variant Clip to Clip
    Bundle Diameter max (metric) 18.3mm
    Bundle ∅ 14.0-18.3mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Height (H) 25.7mm
    Height (H2) 25.7mm
    Length (L) 49.2mm
    Length (L2) 26.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026695860
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-Nr.: 156-04240 Details My watchlist Contact
    Base Data Product Dimensions Specifications Logistics and Packaging Downloads
    Downloads
    Add to watchlist

    Request your individual offer now

     Request quote
