13/11/2024

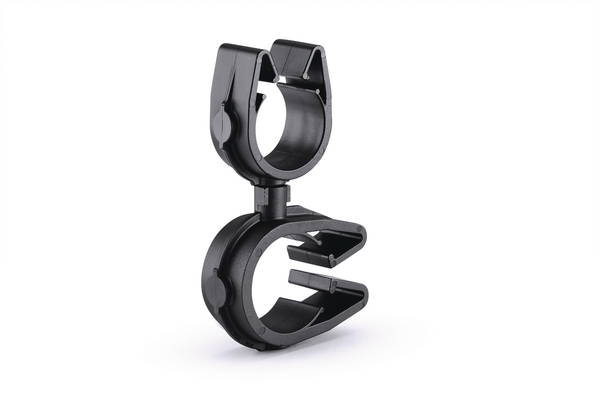

Cable clip with pipe/tube holder, Dmin=14.0mm, Dmax=18.3mm, nom∅=16.0 mm, nom∅2=22.0 mm
Art.-Nr. 156-02137 | MOC16FMOC22M180-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC16FMOC22M180-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC16FMOC22M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter Nom. 2 (ND2) 22.0 mm
    Bundle Diameter max (metric) 18.3mm
    Bundle ∅ 14.0-18.3mm
    Bundle ∅ 2 max. 25.0mm
    Bundle ∅ 2 min. 20.0mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Height (H) 30.5mm
    Height (H2) 30.5mm
    Length (L) 63.34mm
    Length (L2) 30.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717043
    Packaging 1 - Weight (kg) 205.44kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
