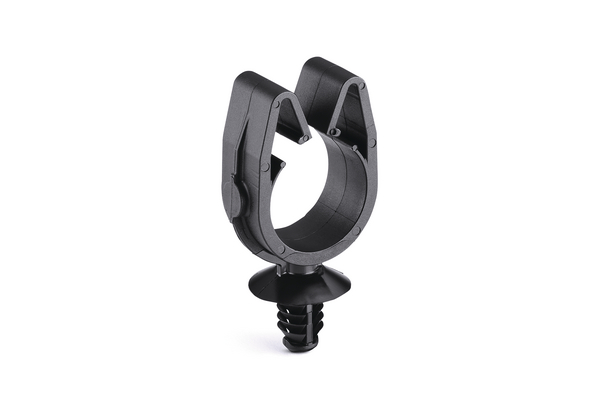

Cable clip for hole (round)/with pipe/tube holder, T=0.6 - 5.5mm, ∅6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=17.0mm, Dmax=21.8mm
Art.-Nr. 151-03823 | MOC19FT6.5-PA66HIRHSUV-BK |  Details

A rotatable dual routing clip that keeps two routings secured and separated.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC19FT6.5-PA66HIRHSUV-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type MOC19FT6.5
    Bundle Diameter max (metric) 21.8mm
    Bundle ∅ 17.0-21.8mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Fixing Hole Shape Circular
    Height (H) 48.5mm
    Length (L) 27.3mm
    Panel Thickness max. 0.6 - 5.5mm
    for Hole ∅ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 5.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026695938
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
