26/12/2024

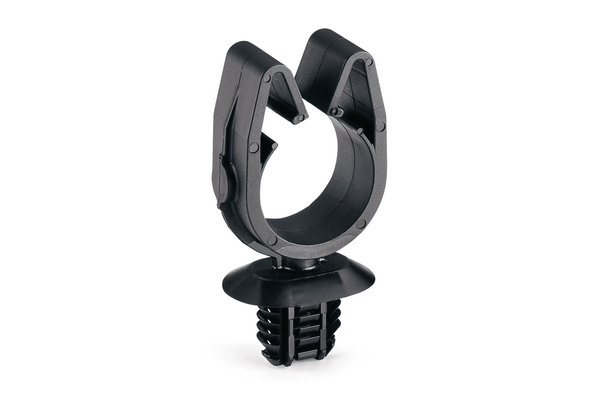

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=17.0mm, Dmax=21.8mm, nom∅=19.0 mm
Art.-Nr. 151-01789 | MOC19FTOVAL-PA66HIRHSUV-BK |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC19FTOVAL-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Type MOC19FTOVAL
    Bundle Diameter Nom. (ND) 19.0 mm
    Bundle Diameter max (metric) 21.8mm
    Bundle ∅ 17.0-21.8mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Fixing Hole Shape Oval
    Height (H) 49.9mm
    Length (L) 27.2mm
    Panel Thickness max. 0.6 - 6.75mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026572383
    Packaging 1 - Weight (kg) 203.38kg
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
