13/11/2024

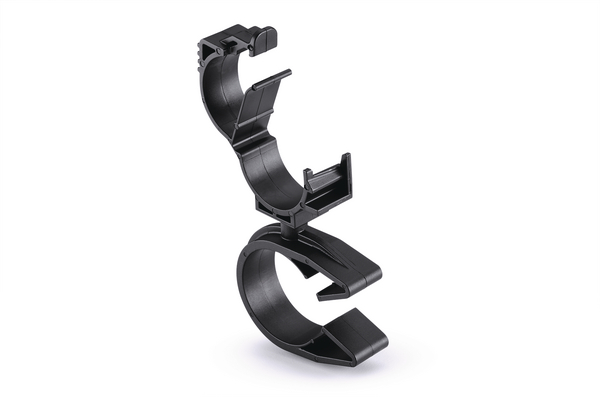

Cable clip with pipe/tube holder, Dmin=23.0mm, Dmax=29.0mm, nom∅=26.0 mm, nom∅2=15.0 mm - 19.0 mm
Art.-Nr. 156-01897 | MOC26FLOC15-19-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC26FLOC15-19-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type MOC26FLOC15-19
    Variant Clip to Clamp
    Bundle Diameter Nom. (ND) 26.0 mm
    Bundle Diameter Nom. 2 (ND2) 15.0 mm - 19.0 mm
    Bundle Diameter max (metric) 29.0mm
    Bundle ∅ 23.0-29.0mm
    Bundle ∅ 2 max. 19.0mm
    Bundle ∅ 2 min. 15.0mm
    Bundle ∅ min. 23.0mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 63.90mm
    Length (L2) 37.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026715780
    Packaging 1 - Weight (kg) 207.46kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
