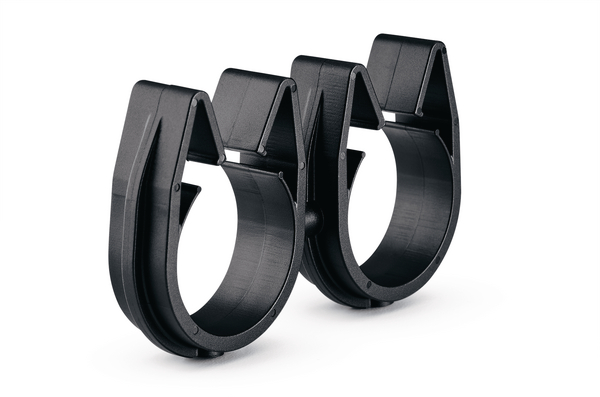

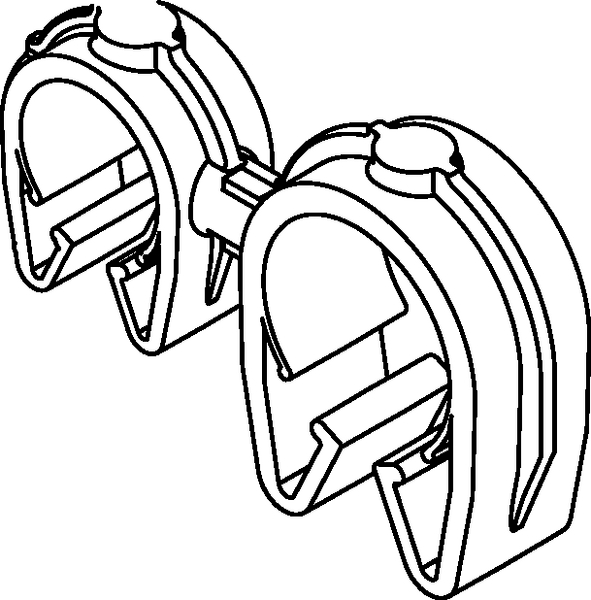

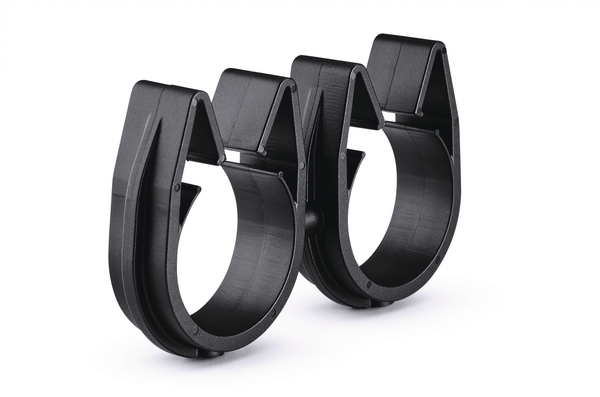

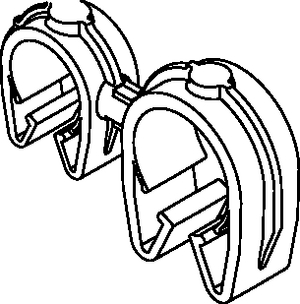

Cable clip with pipe/tube holder, Dmin=23.0mm, Dmax=29.0mm, nom∅=26.0 mm, nom∅2=26.0 mm
Art.-Nr. 156-02369 | MOC26FMOC26M-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC26FMOC26M-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type MOC26FMOC26M
    Variant Clip to Clip
    Attach to Ø 23.0 - 29.0
    Bundle Diameter Nom. (ND) 26.0 mm
    Bundle Diameter Nom. 2 (ND2) 26.0 mm
    Bundle Diameter max (metric) 29.0mm
    Bundle ∅ 23.0-29.0mm
    Bundle ∅ 2 max. 29.0mm
    Bundle ∅ 2 min. 23.0mm
    Bundle ∅ min. 23.0mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 73.4mm
    Length (L2) 38.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586380
    Packaging 1 - Weight (kg) 207.75kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 12.2kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
