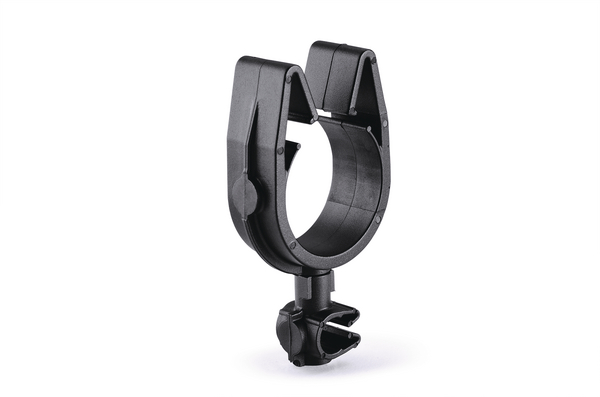

Cable clip with pipe/tube holder, Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, nom∅2=26.0 mm
Art.-Nr. 156-01983 | MOC7FMOC26M180-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC7FMOC26M180-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC7FMOC26M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 7.0 mm
    Bundle Diameter Nom. 2 (ND2) 26.0 mm
    Bundle Diameter max (metric) 8.0mm
    Bundle ∅ 6.0-8.0mm
    Bundle ∅ 2 max. 29.0mm
    Bundle ∅ 2 min. 23.0mm
    Bundle ∅ min. 6.0mm
    Depth (D) 12.0mm
    Height (H) 34.5mm
    Height (H2) 34.5mm
    Length (L) 57.99mm
    Length (L2) 28.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717104
    Packaging 1 - Weight (kg) 204.7kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
