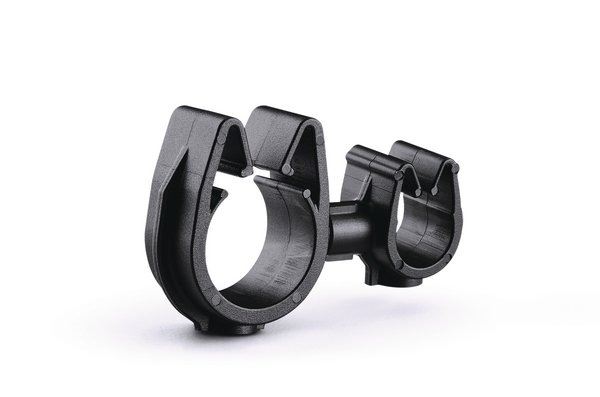

Cable clip with pipe/tube holder, Dmin=8.0mm, Dmax=10.0mm, nom∅=9.0 mm, nom∅2=14.0 mm
Art.-Nr. 156-02328 | MOC9FMOC14M-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC9FMOC14M-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC9FMOC14M
    Variant Clip to Clip
    Bundle Diameter Nom. (ND) 9.0 mm
    Bundle Diameter Nom. 2 (ND2) 14.0 mm
    Bundle Diameter max (metric) 10.0mm
    Bundle ∅ 8.0-10.0mm
    Bundle ∅ 2 max. 15.8mm
    Bundle ∅ 2 min. 13.0mm
    Bundle ∅ min. 8.0mm
    Depth (D) 10.0mm
    Height (H) 23.8mm
    Height (H2) 23.8mm
    Length (L) 39.8mm
    Length (L2) 22.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026585857
    Packaging 1 - Weight (kg) 202.5kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
