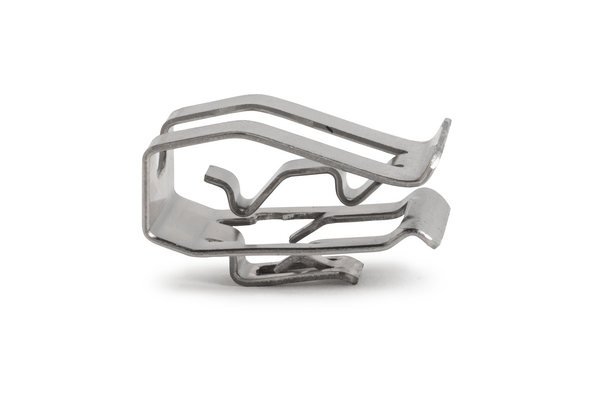

Metal cable clip for edge, T=1.0 - 3.0mm, metal, 100pcs.
Art.-Nr. 151-04064 | MSC2RB-SS304-ML |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 7.6mm
    Cable ∅ min 5.0mm
    Colour Metal (ML)
    Material Stainless Steel (SS304)
    PART DESCRIPTION MSC2RB-SS304-ML
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family For solar panels
    Product Group Fixing elements for edges
    Type MSC2RB
    Height (H) 14.4mm

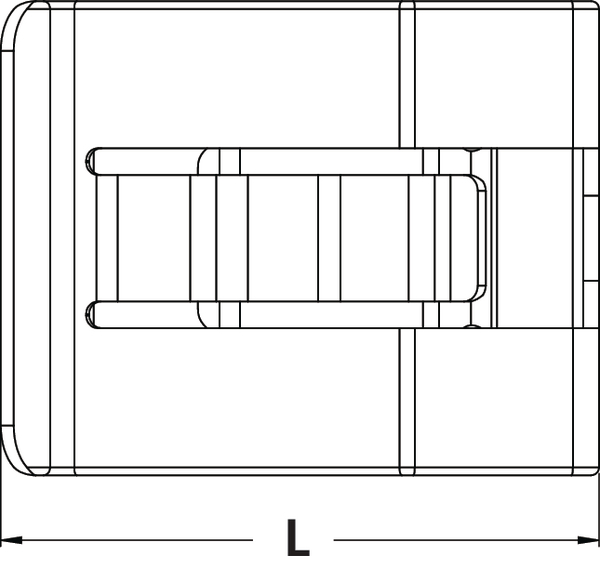

    Length (L) 24.1mm
    Panel Thickness max. 1.0 - 3.0mm

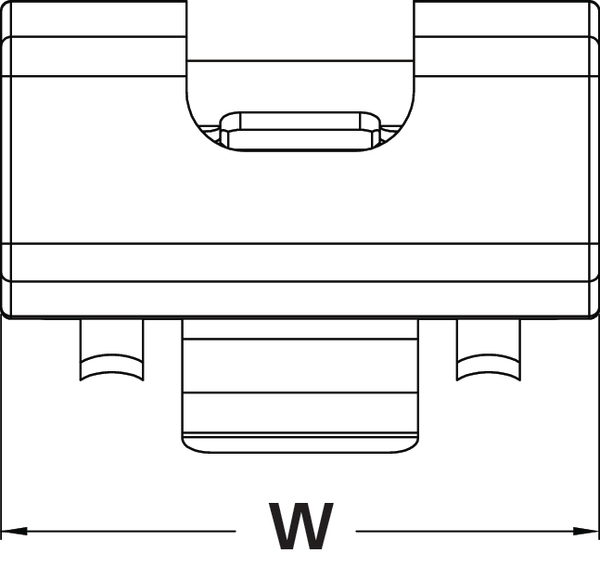

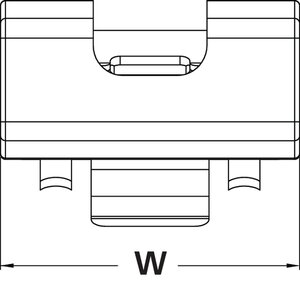

    Width (W) 19.1mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -80 °C to +538 °C
    ROHS compliant Yes
    Reusable (Yes/No) No
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026732718
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
    Show all
