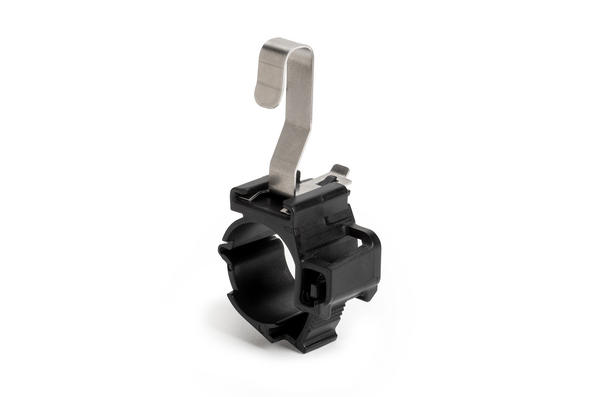

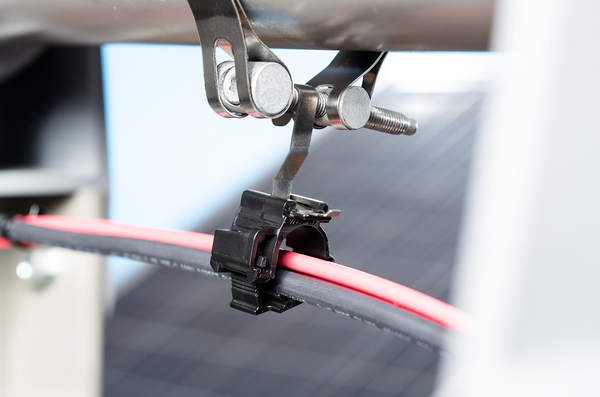

Ratchet O-Clamp
Art.-Nr. 151-04385 | ROC18.5-22.5NXT -PA66HIRHSUV/SS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Mounting Hanger
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS)
    PART DESCRIPTION ROC18.5-22.5NXT -PA66HIRHSUV/SS-BK
    Pack Cont. 200pcs.
    Package Content packed in carton
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5NXT
    Bundle Diameter max (metric) 22.5mm
    Bundle ∅ 18.5-22.5mm

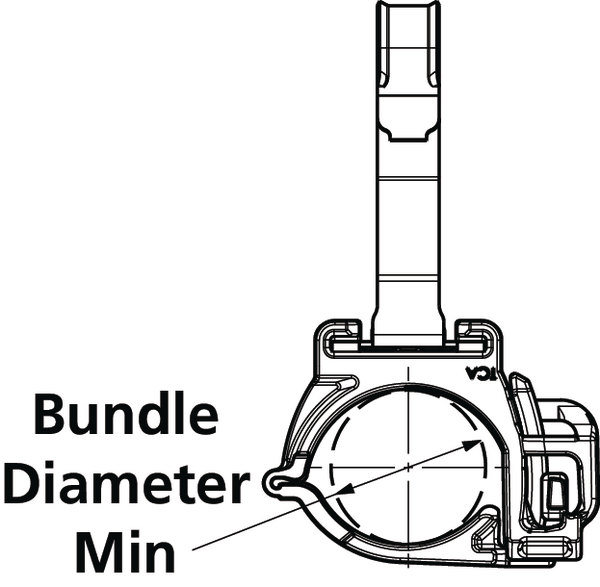

    Bundle ∅ min. 18.5mm

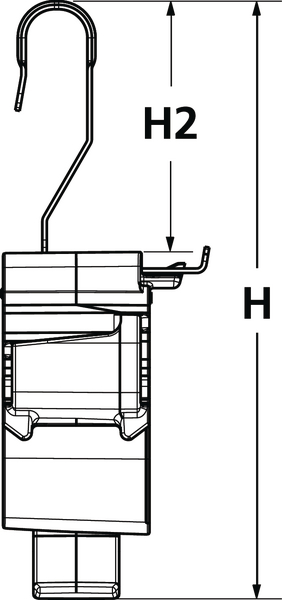

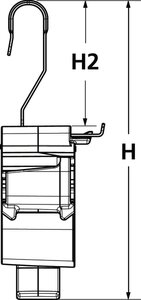

    Height (H) 83.7mm
    Height (H2) 35.1mm
    Length (L) 58.1mm
    Length (L2) 37.0mm
    Min.Tensile Strength 445N

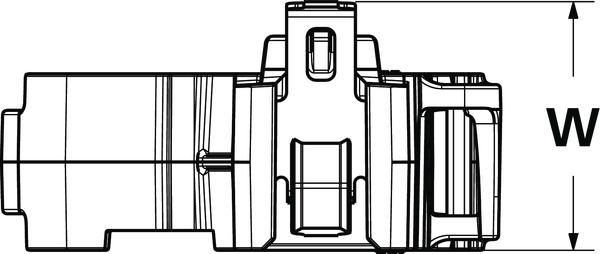

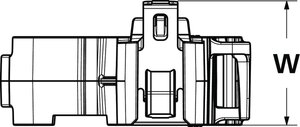

    Width (W) 28.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026756448
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.605m
    Packaging 3 - Qty 200
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0502m³
    Packaging 3 - Width (m) 0.395m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
