21/11/2024

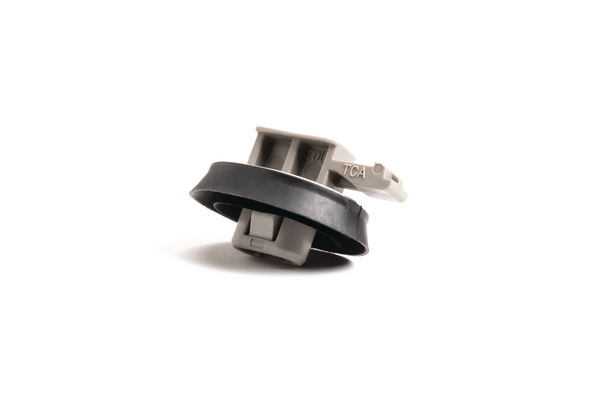

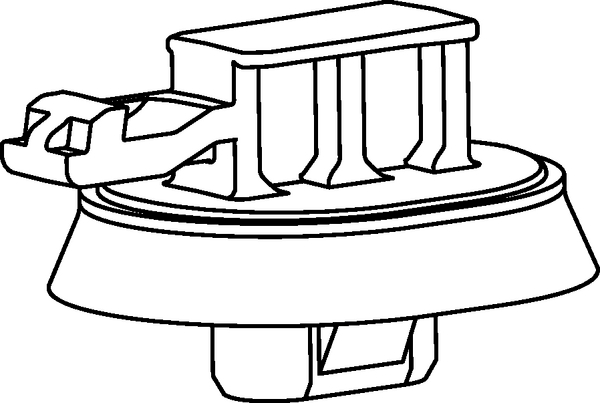

Connector clip, EWCAP-005-7, grey/black, 4000Carton
Art.-Nr. 151-02996 | SAHOVAL1.4TCC7-PA66HIRHS/TPE-BK/GY |  Details

Once installed, perpendicular arrowhead arms reduce movement and will not collapse when exposed to water or load.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY), Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SAHOVAL1.4TCC7-PA66HIRHS/TPE-BK/GY
    Pack Cont. 4000Carton
    Package Content packed in box
    Type SAHOVAL1.4TCC7
    Type of connection USCAR7
    Variant 6.2 x 12.2 mm 6.5 x 12.5 mm 6.5 x 13.0 mm
    Height (H) 17.55mm
    Length (L) 27.28mm
    Panel Thickness max. 1.2 - 1.8mm
    Weight/Unit 0.002145kg
    Width (W) 22.78mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702506
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 9.19kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 204.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
