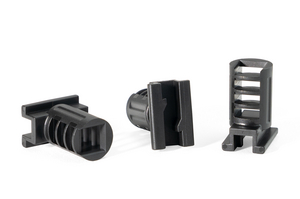

Connector clip, black, 4000Carton
Art.-Nr. 151-02886 | SB5-6CC11-PA66HIRHSUV-BK |  Details

For use with weld studs.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Soft-push design for tool free installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. The Connector Clips are related to a Connector and then secured to a surface depending on the requirement.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SB5-6CC11-PA66HIRHSUV-BK
    Pack Cont. 4000Carton
    Package Content packed in carton
    Product Family Soft-push design
    Product Group Connector clips for weld studs
    Type SB5-6CC11
    Variant 5 mm/6 mm Threaded Stud
    Height (H) 15.0mm
    Length (L) 42.93mm
    Stud ∅ 0.20 " 0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    Width (W) 14.21mm
    Width (W2) 10.85mm
    for Hole ∅ (FH) 5.0 - 6.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
