SENMT18M6-PPS/ST/ZN-BK
Art.-Nr. 151-04215 | SENMT18M6-PPS/ST/ZN-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mounting
    For Ties T18 - T50
    Material Polyphenylene Sulfide (PPS), Steel (ST), Zinc plated (ZN)
    Mounting Screw Type #10 (M6) Screw
    PART DESCRIPTION SENMT18M6-PPS/ST/ZN-BK
    Pack Cont. 1
    Package Content packed in bag
    Type SENMT18M6

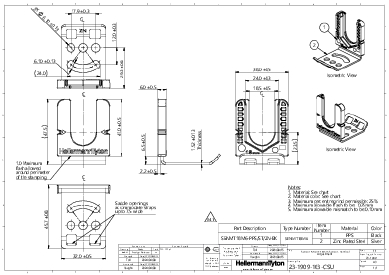

    Height (H) 47.5mm
    Length (L) 45.7mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.08mm
    Width (W) 38.0mm
    for Hole ∅ (FH) 4.3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026741307
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    Discover the versatile addition to our range of metal and plastic cable clamps: the Ratchet P-Clamp. The innovative design makes it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. Installers and maintenance engineers no longer have to hold the bundle and the clamp awkwardly in one hand whilst fixing them securely with the other.

    P-Clamp >
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Cable clips Cable clips

    Cable clips for industrial applications

    From adhesive cable clips to wire clips for parallel routing or fluid management: Discover our product portfolio here.

    Cable clips >
