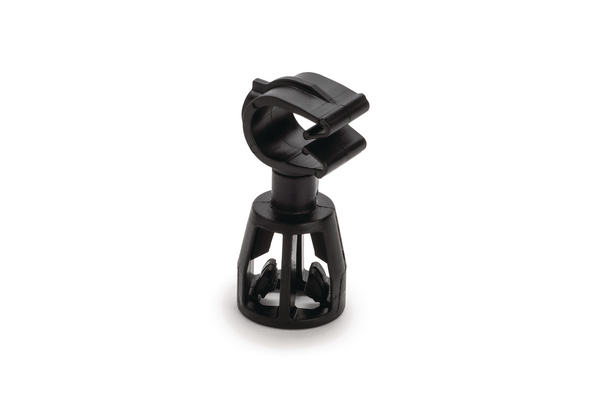

Cable clip for stud, Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, ∅5.0 mm/6.0 mm
Art.-Nr. 156-02876 | SMFMOC7M-PA66HIRHSUV-BK |  Details

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SMFMOC7M-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type SMFMOC7M
    Bundle Diameter Nom. (ND) 7.0 mm
    Bundle Diameter max (metric) 8.0mm
    Bundle ∅ 6.0-8.0mm
    Bundle ∅ min. 6.0mm
    Depth (D) 15.0mm
    Height (H) 32.7mm
    Height (H2) 27.2mm
    Length (L) 15.0mm
    Length (L2) 0mm
    Nominal ∅ 7.0mm
    Stud ∅ 0.20 ";0.24"
    Stud ∅ 5.0 mm, 6.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant No
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026635750
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
