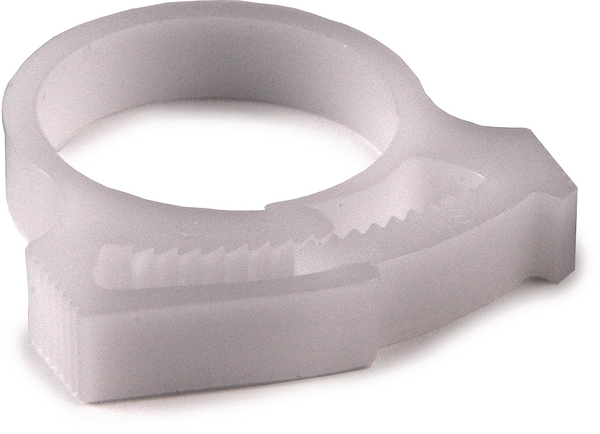

Plastic hose clamp, ∅19.9-23.6mm, white, 100pcs.
Art.-Nr. 181-00256 | SNP18A-POM-WH |  Details

Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour White (WH)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    PART DESCRIPTION SNP18A-POM-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP18A
    Variant Closed
    Bundle Diameter max (metric) 23.6mm
    Bundle ∅ 19.9-23.6mm
    Bundle ∅ min. 19.9mm
    Wall (WT) .067"
    Wall (WT) 1.7mm
    Width (W) max. 34.98mm
    Width (W) min. 23.6mm
    Width (W) min. 0.929"
    Width (W2) 5.94mm
    ∅ D max. 23.6mm
    ∅ D max. 0.929"
    ∅ D min. 19.71mm
    ∅ D min. 0.776"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026423531
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
