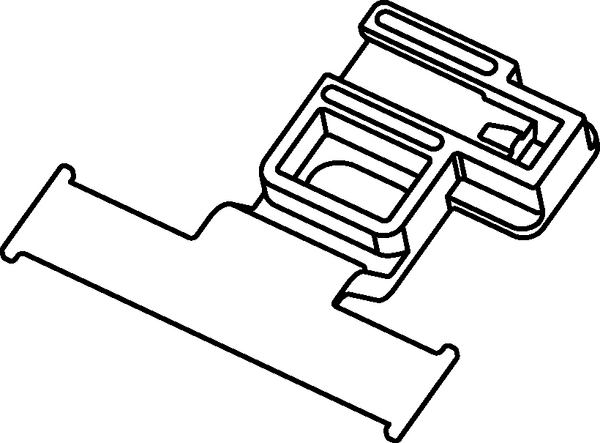

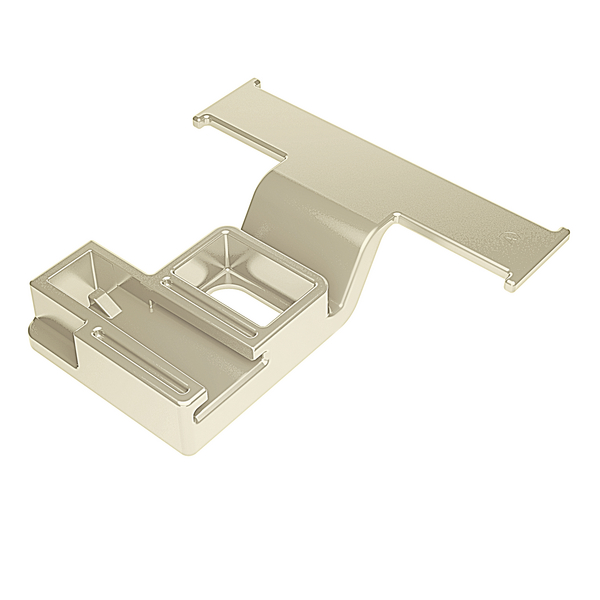

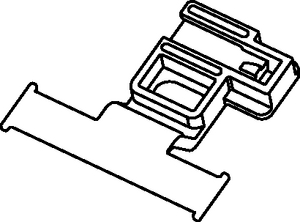

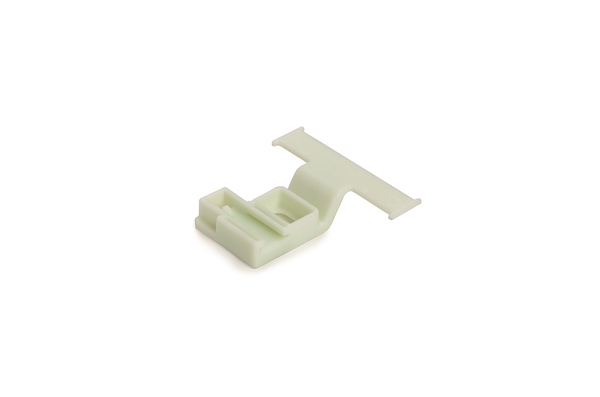

Connector clip for connector, natural, 5000pcs.
Art.-Nr. 133-01501 | SOC15-PA66HIRHS-NA |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC15-PA66HIRHS-NA
    Pack Cont. 5000pcs.
    Package Content packed in carton
    Type SOC15
    Type of connection USCAR11
    Bundling Bar Length 1.97"
    Bundling Bar Length 50.0mm
    Height (H) 11.7mm
    Length (L) 50.0mm
    Offset Length 34.0mm
    Weight/Unit 0.0004kg
    Width (W) 50.0mm
    for Hole ∅ (FH) 6.3 x 12.7 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026482606
    Packaging 1 - Height (m) 0.203m
    Packaging 1 - Length (m) 0.508m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03403m³
    Packaging 1 - Weight (kg) 0.600001kg
    Packaging 1 - Width (m) 0.33m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 1.220001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 45.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
