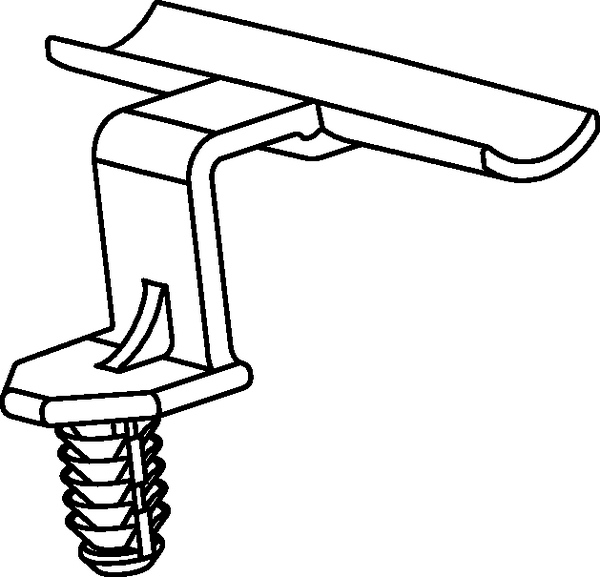

Bundling clip for hole (round), L=50.0mm, SO=22.6mm, black, 1500pcs.
Art.-Nr. 133-03836 | SOC23SO18-PA66HIRHS-BK |  Details

Standoff design secures the bundle away from the mounting hole and areas that could cause damage due to rubbing.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

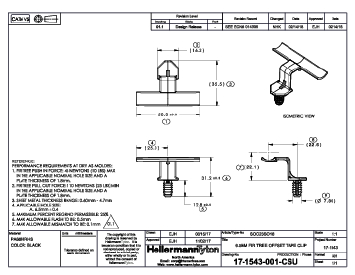

    PART DESCRIPTION SOC23SO18-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in carton
    Type SOC23SO18
    Bundling Bar Length 50.0mm
    Height (H) 31.2mm
    Length (L) 50.0mm
    Length (L2) 22.6mm
    Offset Length 22.6mm
    Panel Thickness max. 0.6 - 4.7mm
    Weight/Unit 0.002467kg
    Width (W) 35.56mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 4.7 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026619354
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.56m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02814m³
    Packaging 1 - Weight (kg) 3.700501kg
    Packaging 1 - Width (m) 0.335m
    Packaging 3 - Height (m) 0.175m
    Packaging 3 - Length (m) 0.565m
    Packaging 3 - Qty 1500
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0336m³
    Packaging 3 - Weight (kg) 4.201kg
    Packaging 3 - Width (m) 0.34m
    Packaging 4 - Height (m) 1.195m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.147m³
    Packaging 4 - Weight (kg) 121.812kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
