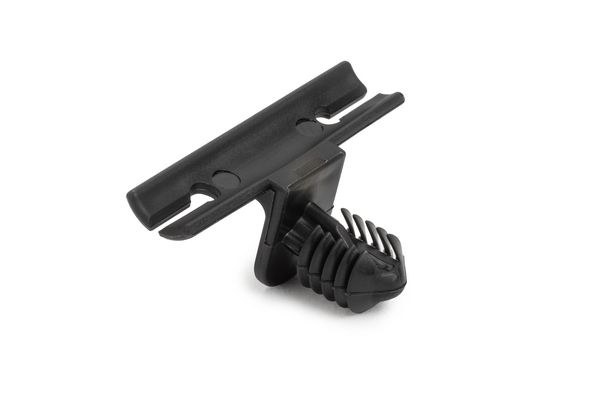

Bundling clip, L=36.2mm, black, 3500Bag
Art.-Nr. 133-03219 | SOC36FT6-PP-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polypropylene (PP)
    PART DESCRIPTION SOC36FT6-PP-BK
    Pack Cont. 3500Bag
    Package Content packed in bag
    Type SOC36FT6
    Bundling Bar Length 1.43"
    Bundling Bar Length 36.2mm
    Height (H) 23.9mm
    Height (H2) 13.3mm
    Length (L) 36.2mm
    Length (L2) 8.8mm
    Panel Thickness max. 2.5mm
    Stud ∅ 0.20"
    Stud ∅ 5.0 mm
    Width (W) 15.2mm
    for Hole ∅ (FH) 7.25 - 7.75 mm
    for Panel Thickness min - max 2.5 - 13 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026589541
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
