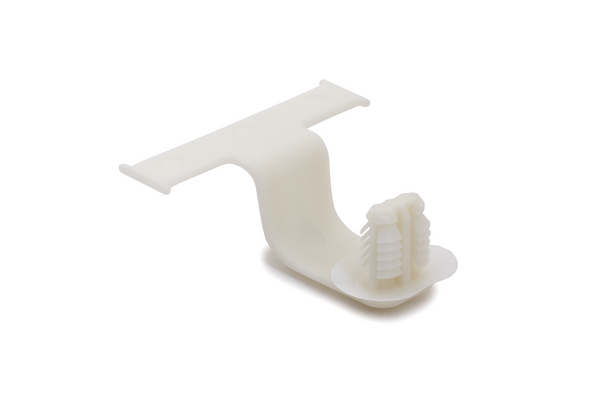

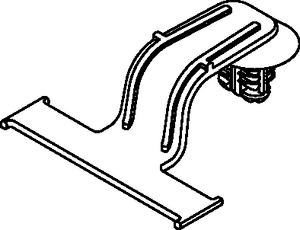

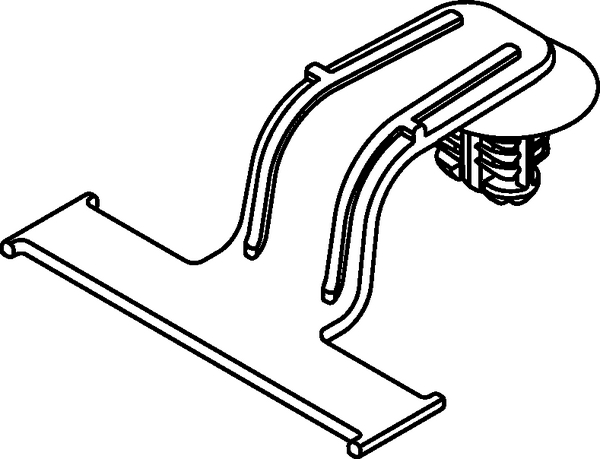

Bundling clip for hole (oval), L=50.0mm, SO=37.0mm, natural, 2000pcs.
Art.-Nr. 151-03658 | SOC37FTOVAL-PA66HIRHS-NA |  Details

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Natural (NA)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC37FTOVAL-PA66HIRHS-NA
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type SOC37FTOVAL
    Bundling Bar Length 1.97"
    Bundling Bar Length 50.0mm
    Fixing Hole Shape Oval
    Height (H) 19.1mm
    Length (L) 50.0mm
    Offset Length 37.0mm
    Panel Thickness max. 0.6 - 6.75mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026754628
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
