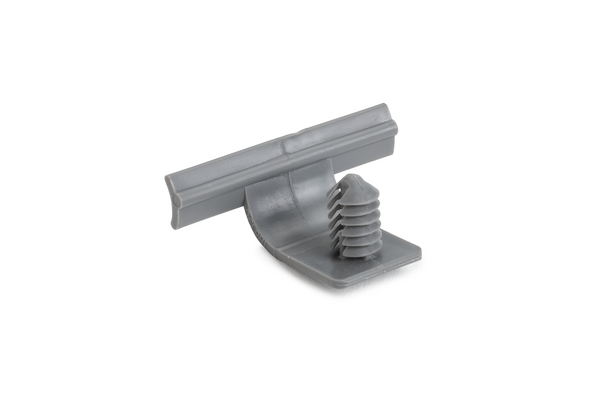

Bundling clip, L=40.0mm, grey, 2400Carton
Art.-Nr. 133-02798 | SOC40OS99.5FT6.5-PP-GY |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Material Polypropylene (PP)
    PART DESCRIPTION SOC40OS99.5FT6.5-PP-GY
    Pack Cont. 2400Carton
    Package Content packed in carton
    Type SOC40OS99.5FT6.5
    Bundling Bar Length 1.57"
    Bundling Bar Length 40.0mm
    Height (H) 18.0mm
    Height (H2) 13.8mm
    Length (L) 40.0mm
    Length (L2) 16.0mm
    Panel Thickness max. 0.5 - 4.0mm
    Width (W) 9.5mm
    for Hole ∅ (FH) 6.2 - 6.5 mm
    for Panel Thickness min - max 0.5 - 4 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580739
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
