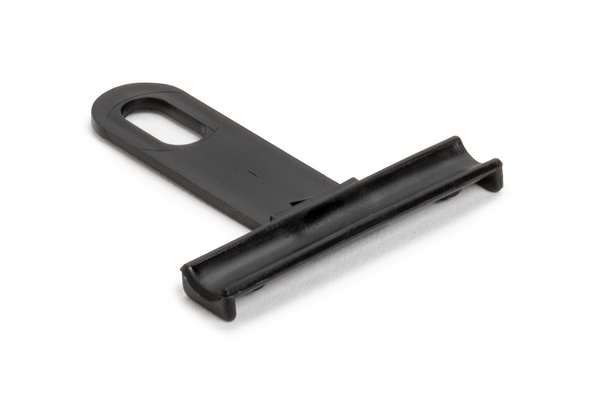

Bundling clip, L=42.7mm, black, 2200Carton
Art.-Nr. 133-02800 | SOC42OS40OVAL-PP-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
    Colour Black (BK)
    Material Polypropylene (PP)
    PART DESCRIPTION SOC42OS40OVAL-PP-BK
    Pack Cont. 2200Carton
    Package Content packed in carton
    Type SOC42OS40OVAL
    Bundling Bar Length 1.68"
    Bundling Bar Length 42.7mm
    Length (L) 42.7mm
    Width (W) 34.9mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580753
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Weight (kg) 3.57kg
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
