22/11/2024

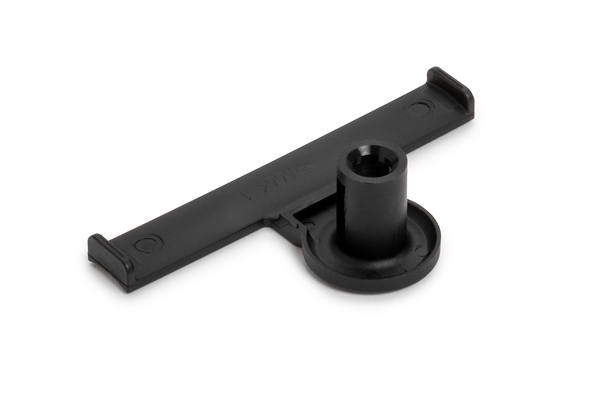

Bundling clip, L=65.4mm, black, 1000Bag
Art.-Nr. 133-03397 | SOCSB5-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SOCSB5-PA66HIRHSUV-BK
    Pack Cont. 1000Bag
    Package Content packed in bag
    Type SOCSB5
    Bundling Bar Length 2.57"
    Bundling Bar Length 65.4mm
    Height (H) 17.5mm
    Length (L) 65.4mm
    Stud ∅ 0.20"
    Stud ∅ 5.0 mm
    Width (W) 34.8mm
    for Hole ∅ (FH) 5.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026594767
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
