25/12/2024

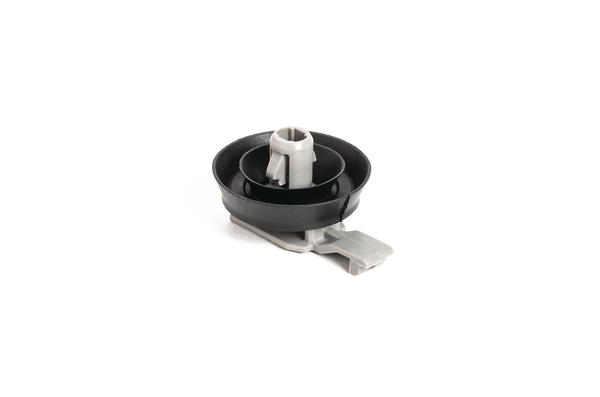

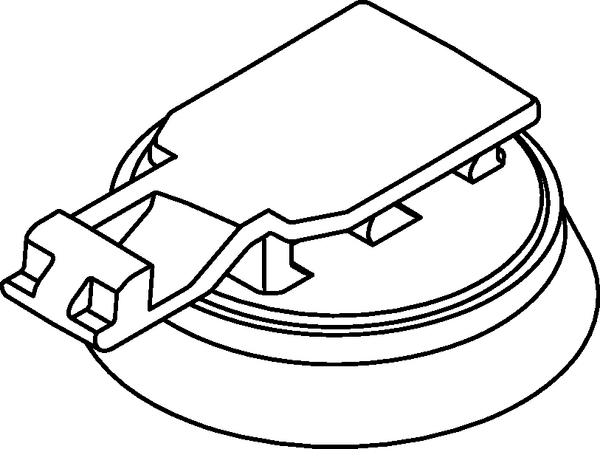

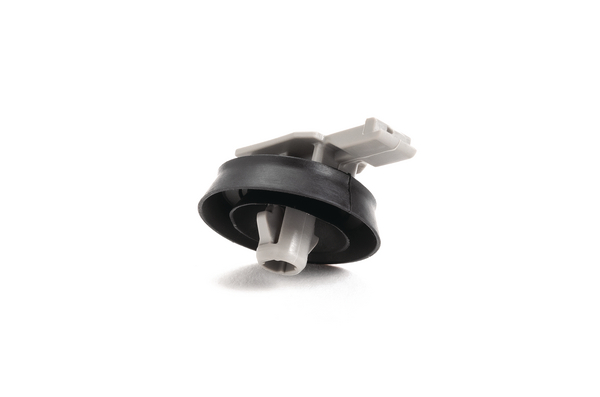

Connector clip, grey/black, 4000pcs.
Art.-Nr. 151-02080 | SRAH6.5D1.4TCC-PA66HIRHS/TPE-BK/GY |  Details

Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY), Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SRAH6.5D1.4TCC-PA66HIRHS/TPE-BK/GY
    Pack Cont. 4000pcs.
    Package Content packed in bag
    Type SRAH6.5D1.4TCC
    Type of connection USCAR11
    Variant 6.1 - 6.9 mm
    Height (H) 15.08mm
    Length (L) 22.3mm
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 22.3mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026725789
    Packaging 1 - Weight (kg) 0.003kg
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 4.55kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 120000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
