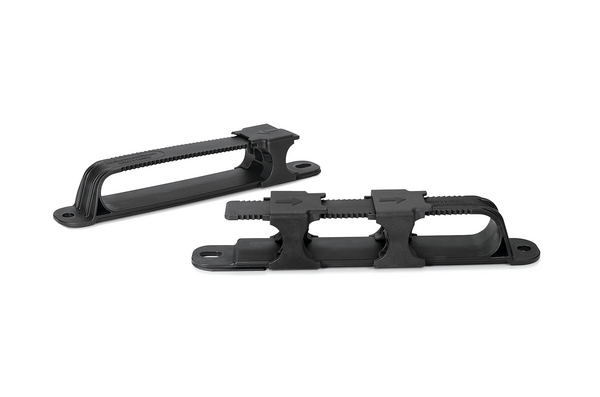

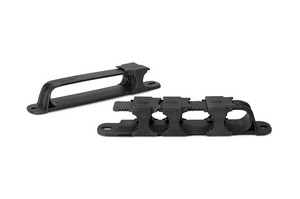

Screwed Ratchet Clamp
Art.-Nr. 156-03187
| SRC110M6-PA666GF15/PA666GF30-BK
|
Details
- Cables and tubes can be bundled in parallel
- Can be opened and closed without tools due to lever on the sliding element
- Re-openable, thus cables can be exchanged and added when required
- Can be screwed vertically or horizontally depending on the equipment
- After being screwed the locking cover/ lever is pushed onto the cable
- Allows a flexible accommodation of the cables with regards to the number of cables to be routed
Request your individual offer now
Request quote
More products in this product group:
| Application | The Screwed Ratchet Clamp can be used wherever cables are to be laid in parallel. The clamp can be mounted both horizontally and vertically. In the second assembly step the cables can be inserted. The component can be used to fix various cables or cable combinations as it can be filled in a range from 19 to 110 mm. |
| Cable ∅ max | 19mm |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting |
| Key product features | for multiple routing, releasable, removable, reusable |
| Material | Polyamide 6.6/6, glass-fibre reinforced (PA666GF15), Polyamide 6.6/6, glass-fibre reinforced (PA666GF30) |
| Mounting Screw Type | M6 Screw |
| PART DESCRIPTION | SRC110M6-PA666GF15/PA666GF30-BK |
| Pack Cont. | 25pcs. |
| Package Content packed in | bag |
| Product Family | for multiple parallel cable routing |
| Product Group | Screwed Ratchet Clamp |
| Type | SRC110M6 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026713007 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00533m³ |
| Packaging 1 - Weight (kg) | 0.81434kg |
| Packaging 1 - Width (m) | 0.24m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.59208kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 148.132kg |
| Packaging 4 - Width (m) | 0.8m |
