28/04/2025

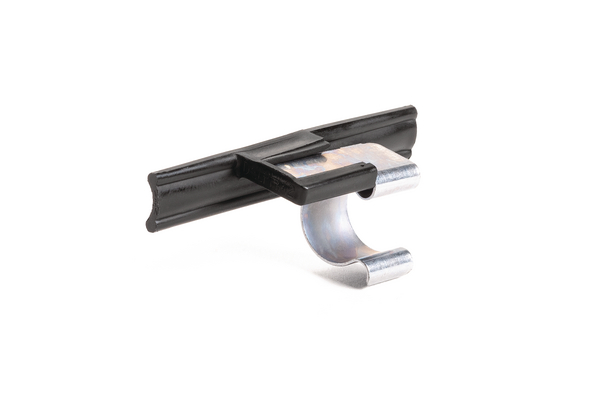

Bundling clip for edge, SO=5.8mm, black, 2000pcs.
Art.-Nr. 133-04368 | TBC85-PP/MET-BK |

Copied
Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.

    • The different fastening orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties.
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polypropylene (PP), Metal (MET)
    PART DESCRIPTION TBC85-PP/MET-BK
    Pack Cont. 2000pcs.
    Package Content packed in pack
    Type TBC85
    ⌀ D 0.12"
    Bundle ⌀ 6.1mm
    Bundle ⌀ max. 6.1mm
    Diameter (D) 3.0mm
    Height (H) 16mm
    Length (L) 10.9mm
    Length (L2) 54.1mm
    Offset Length 5.8mm
    Panel Thickness max. 2.1 - 2.9mm
    Width (W) 15.2mm
    Width (W2) 15.3mm
    for Panel Thickness min - max 2.1 - 2.9 mm
    CE Certification No
    CSA Certified No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715063
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
