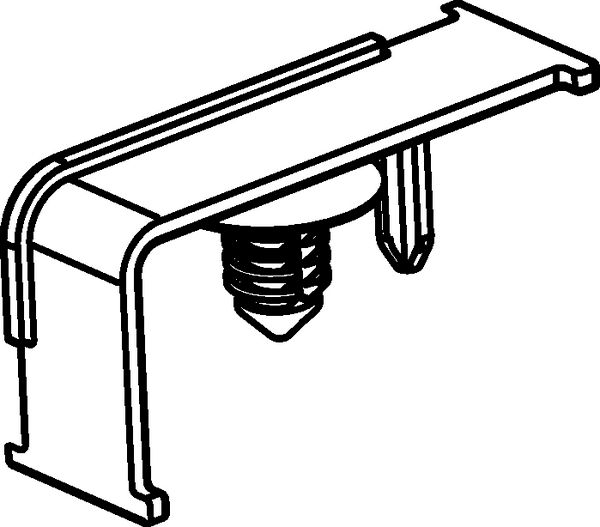

Bundling clip for hole (round), L=68.0mm, black, 4000pcs.
Art.-Nr. 151-02527 | TC20LFT6.5-TS-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TC20LFT6.5-TS-PA66HIRHS-BK
    Pack Cont. 4000pcs.
    Package Content packed in carton
    Type TC20LFT6.5-TS
    Bundling Bar Length 68.0mm
    Height (H) 24.2mm
    Length (L) 46.2mm
    Panel Thickness max. 0.6 - 5.0mm
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 5 mm
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026611037
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
